Assembling the product
- Insert the handle into the aperture at the top of the head
- Push plastic upper handle section into place which will lock into place by way of a metal button unit and screw the collar in securely.
Removing the plates and fitting pads
- Make sure appliance is not plugged in before fitting pads.
- Turn the machine over and lay flat so you can access the brush plates
- Put your palm onto the centre of the brush plates, use your fingers to grasp the outer edge and levy the plates away from the machine.
Please note: For the first time you may need to use some force, however you will not break the machine.
- Once the brush plates are removed align the hook and loop plates using the four prongs and push into place. Then simply choose which pads to apply to the hook and loop plates.
- Always use two plates of the same type, i.e. not 1 brush and 1pad.
- Simply pull the plates/brushes off to remove and change. White / blue / yellow pads can be applied directly to the backing plates and peeled off to remove
Please note: Please remove the plates before changing the pads
Adjust the height of the handle to suit your needs by pulling on the extension button.

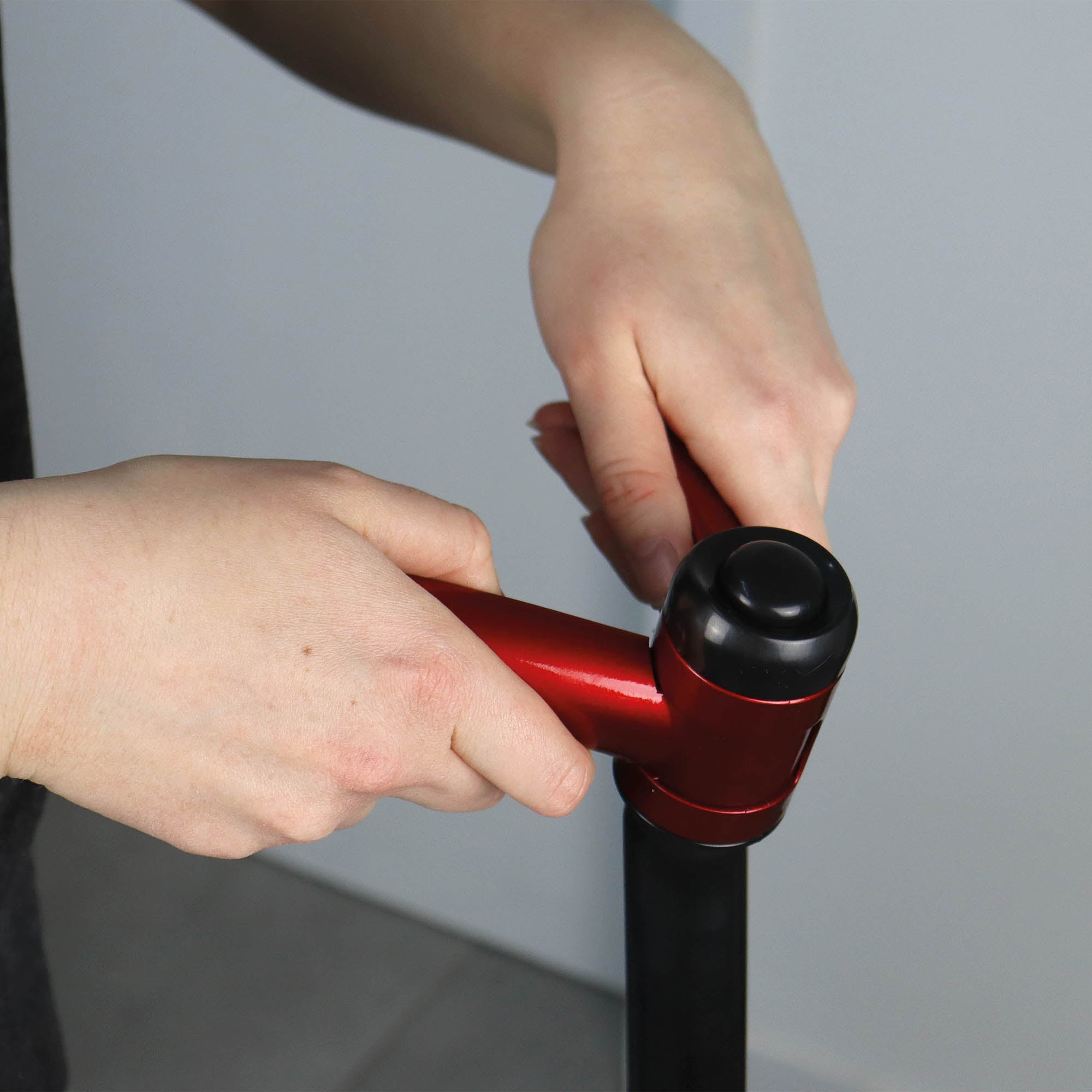

For additional stability the pro-grip handle can be opened to enable two-handed use. Depress the button above the grip and open the handle.
Useful tips
Do not use on carpet
Take care not to slip over when polishing floors, they can become very slippery in the process. Only use dedicated floor products, other inappropriate detergents or types of polish could leave the floor dangerously slippery. Do not leave the product operating in one area for a prolonged period of time as this may damage your floor surface.
Applying floor treatments

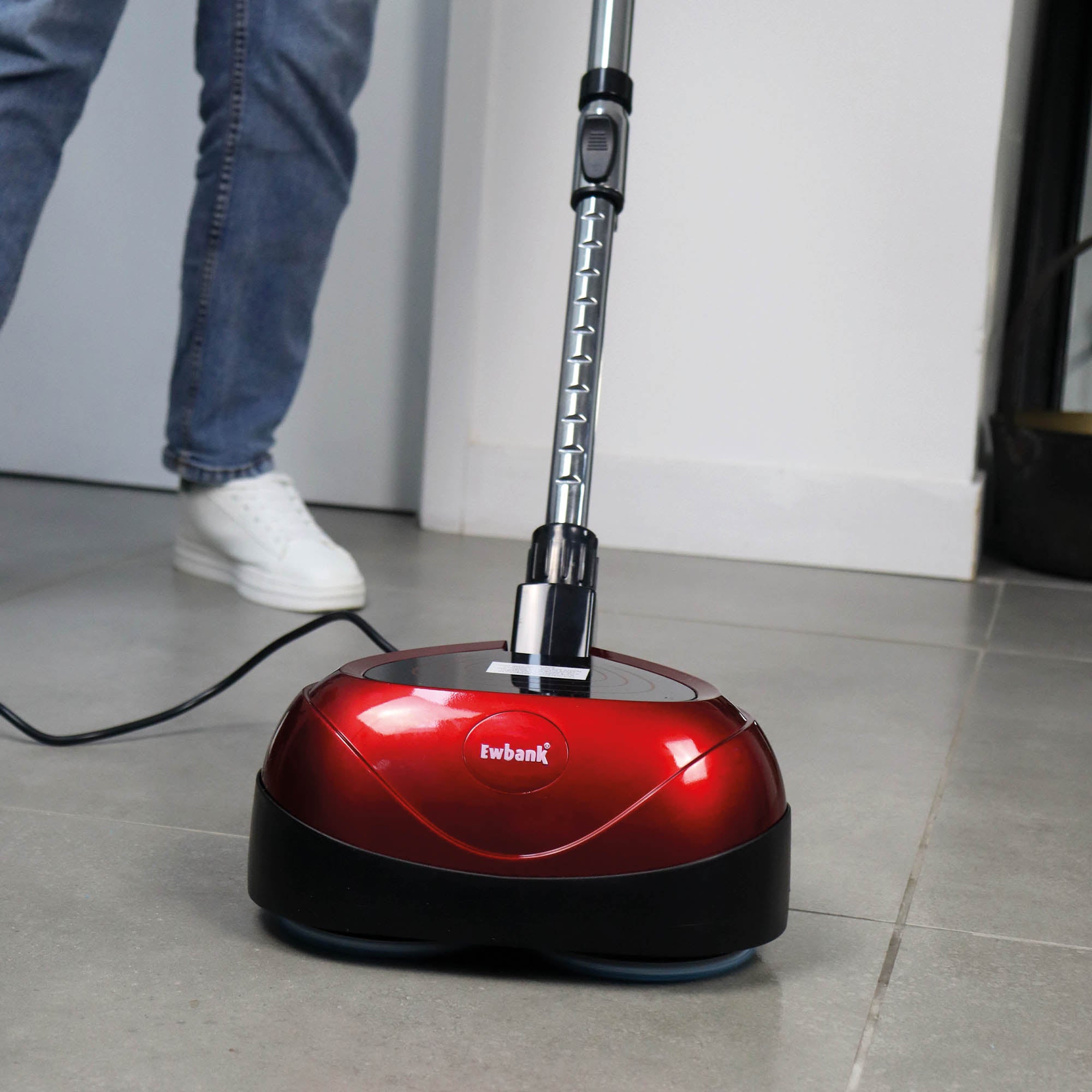

• The recommended floor treatment is Ewbank Floor Polish, which has been specifically developed to compliment the EP170. • Always read and follow the manufacturer’s instructions. • Apply the treatment directly to the floor unless instructions indicate otherwise. Scrubbing / Cleaning the floor • Heavily soiled surfaces may require the brush attachments are used initially to loosen any debris. Otherwise ensure that the white scrubbing pads are attached. • Use the white scrubbing pads with floor cleaner or Ewbank Floor Polish to remove stubborn stains or old treatments from the floor surface. • Turn the product on at the power socket. • With your foot securing the head of the polisher on the floor, pull the handle towards you and the product will start.
Returning the handle to its upright position will stop the product.
• Move at a speed of about 1 minute every 1m2 and follow the diagram for an even finish. • Do not leave the product operating in one area for a prolonged period as this may damage your floor. • Once cleaning is complete, turn the unit off by returning it to its upright position.
Polishing / buffing the floor
• Clean floor thoroughly first before adding your chosen floor polish / wax • If you are using an alternative floor polishing wax or oil to Ewbank Floor Polish, please refer to the manufacturer’s instructions when using with the Ewbank Floor Polisher EP170. • Start with the blue cleaning pads initially and buff to a finish with the yellow pads for a high-sheen finish. • Keep the polisher moving. Do not stop in one place for a long time or it will spoil the finish. • Once polishing is complete, turn the unit off by returning it to its upright position. • A glossy finish may not always be possible; this depends on the polish/wax used and the type of floor surface. Sometimes several coats of polish will enable a glossy finish.
Power Cable Storage
• The electrical power cable can be stored on the rear of the product using the convenient power cable storage hooks. Cleaning the floor pads • All pads and floor attachments are washable. • The brushes and scouring pads can be washed under the tap with warm soapy water. The blue & yellow polishing pads can also be machine washed and dried naturally. It is recommended to re-shape the pads whilst drying. • The polishing head unit is not suitable for washing in water, it must be wiped with a damp cloth.
